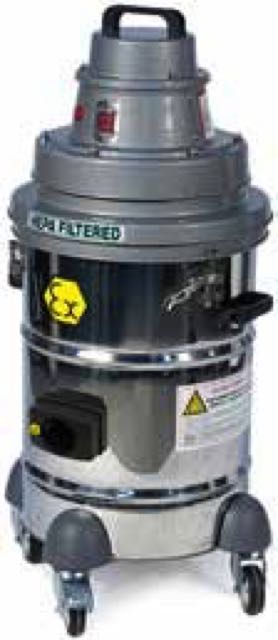

Mac Silver ATEX

Industrial vacuum cleaner

CE EX II 3D Ex tc IIIB T200°C Dc IP6X


This ATEX-compliant device features:

• M & H filter classification

• Compliance with Class H certification

• ESD compliance

• Multistage filtration

• Two-stage engines and turbine

• Large and braked wheels

• New protection concept for internal zone 20

• Explosion-proof turbine and design for ATEX zone 22

• Conductive wheels with brakes

• Static dissipating filters

• Conductive poly-liner bags with safety tape

• PCB pre-filter & additional cartridge

• HEPA H13 cartridge and filter surface

• Filter overpressure indicators

• Safety disposal system

• Safe transfer grounding system

atex
atex

Technical data:

• Usage: Dry vacuum cleaner

• Number of engines: 1

• Power: 1000-1200 max.

• Volt: 220-240

• Water lift mmH2O: 2470

• Air flow m3/h: 210

• Tank volume / material: 30 liters / steel 430

• Cable length: 10 m

• Sound pressure level dB(A): 72

• Diameter of tank socket: 60 mm

• Diameter accessories: 38 / 32 mm

• Dimensions (LxWxH): 500x500x980 mm

• Weight: 30 Kg

Conductive

main filter

HEPA cartridge H14

upstream 4980 cm²

HEPA cartridge

protection

HEPA cartridge

H14 downstream 3700 cm²

Conductive Dralon bag

Conductive polyliner bag

HEPA cartridge for exhausting air

Standard Equipment

leitf hauptfilter
hepa aufwaerts
hepa schutz
hepa abwärts
leitf dralon beutel
leitf polyliner beutel
hepa patr abluft

Optional accessories

Conductive tool kit D 38 / 32 mm

High Reach Cleaning ATEX

Anti-Static tool kit D 38 - 60 mm
