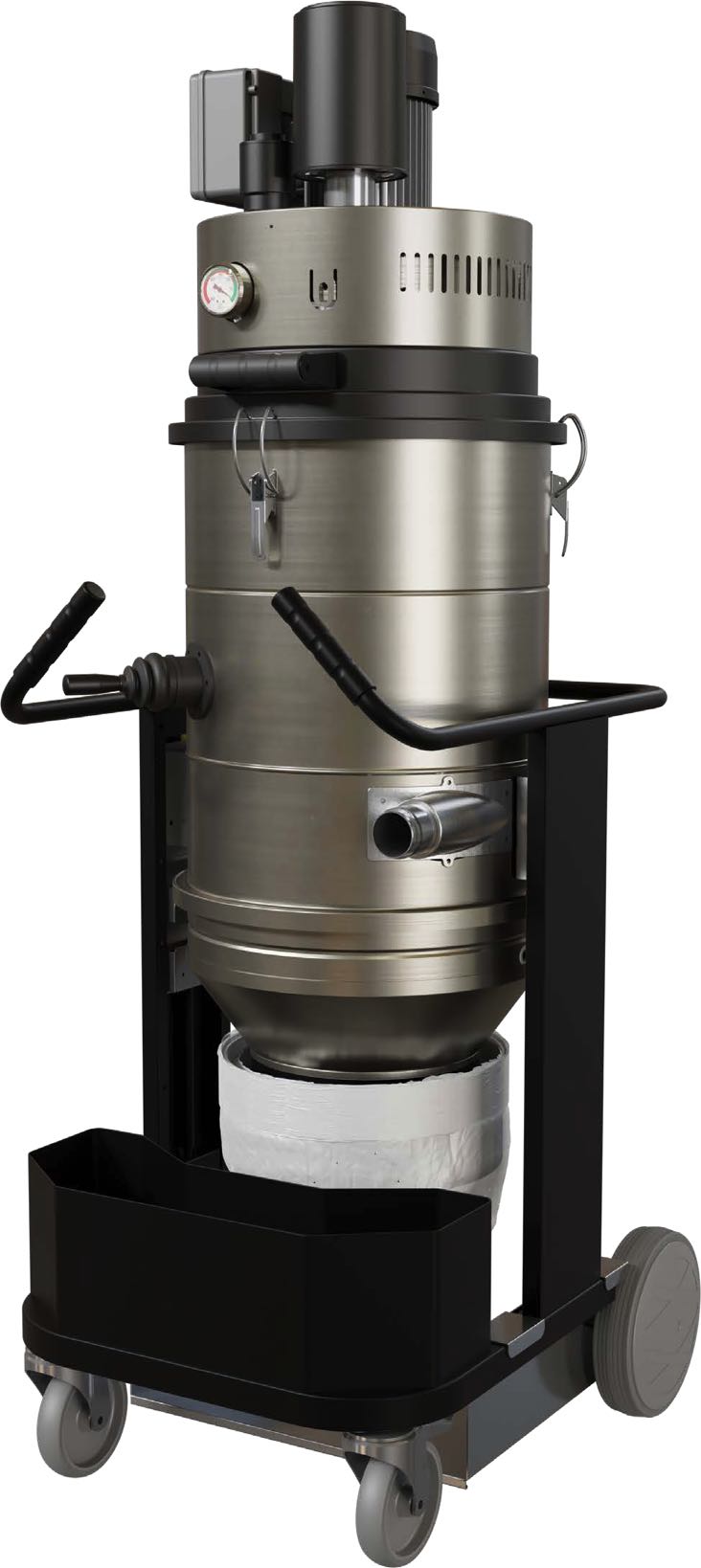

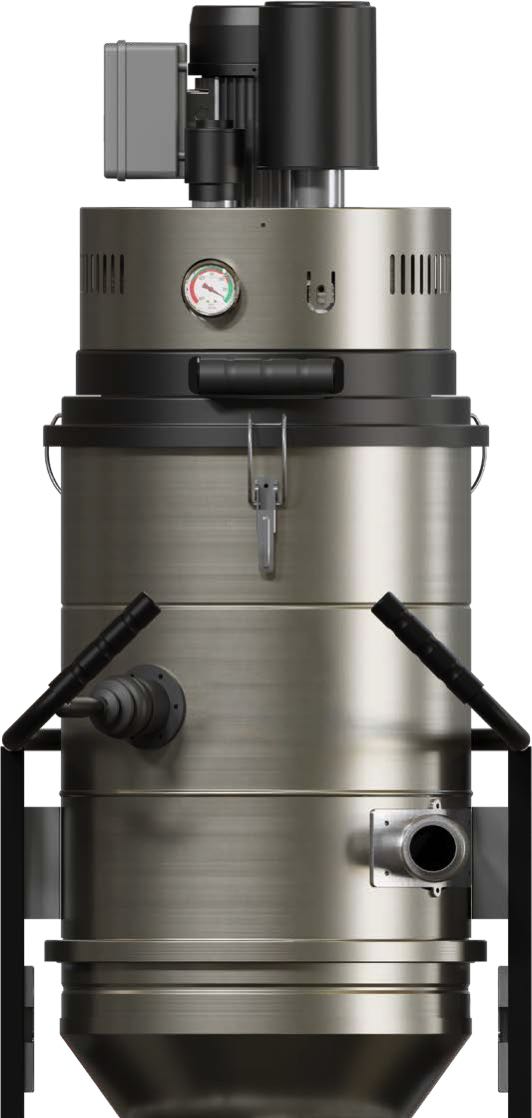

MAC BAG 3D

ATEX


Premium quality special vacuum cleaner, designed for 3D printing applications, suitable for hazardous and fine dust.


•Equipped with the highest quality filters.

•Filter chamber, tank and cover made of AISI 304 Stainless Steel.

•Powerful 3 kW 400V turbine.

•Relief valve on series, calibrated to 20mBar.

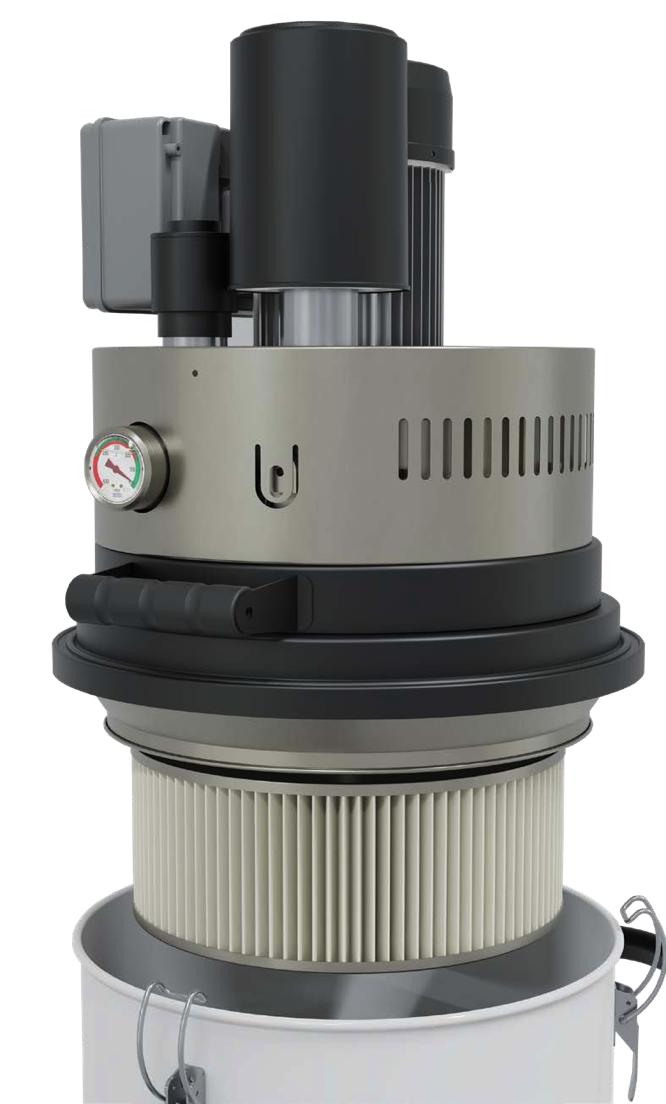

•Integrated manual filter cleaning .

•Sturdy and compact modular trolley for interchangeable

collection systems.

•With Longopac® collection system.

•Antistatic star filter + secondary HEPA H13 filter.

1
6

II 3G Ex dc h IIB T3 Gc

II 3D Ex h tc IIIC T 135°C Dc IP65

ATEX-Industriesauger MAC BAG 3D ATEX
7

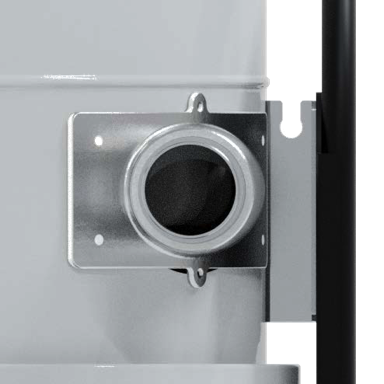

Tangential inlet

4

HEPA

H13

filter

5
m antistatic

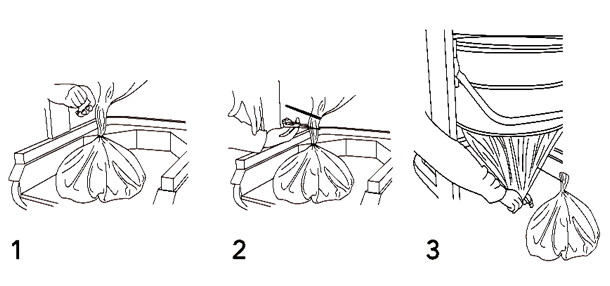

• Longopac ®

continuous bag collection system

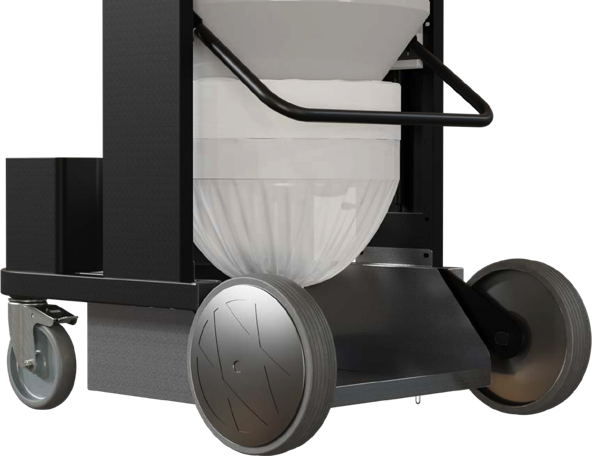

• The swivel castors are lockable to prevent the device from rolling away.

An indispensable safety feature for large and heavy industrial vacuum cleaners!

M-class antistatic stellar filter

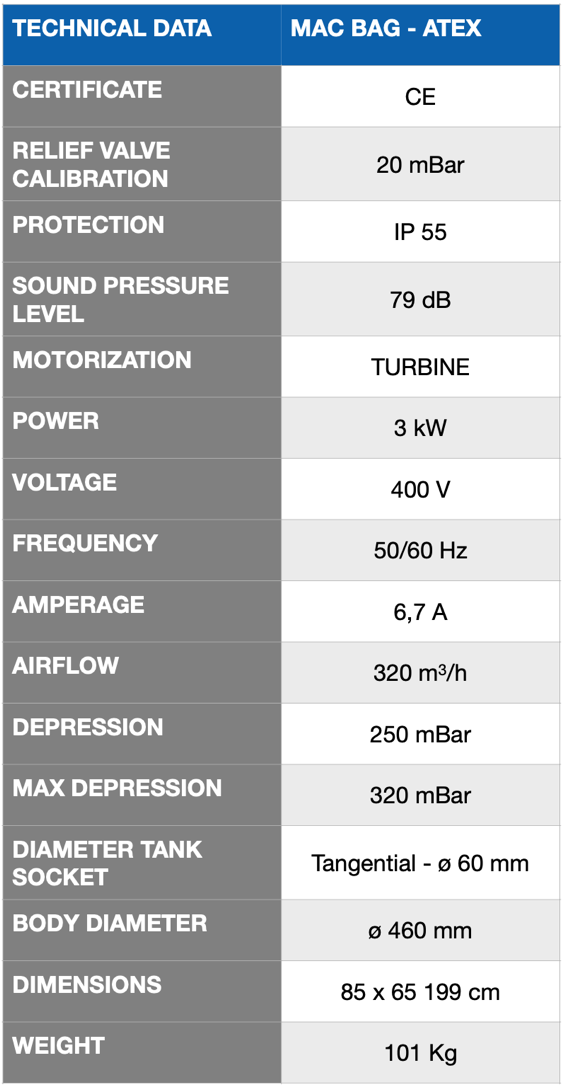

Bildschirmfoto 2021-11-09 um 10.34.08

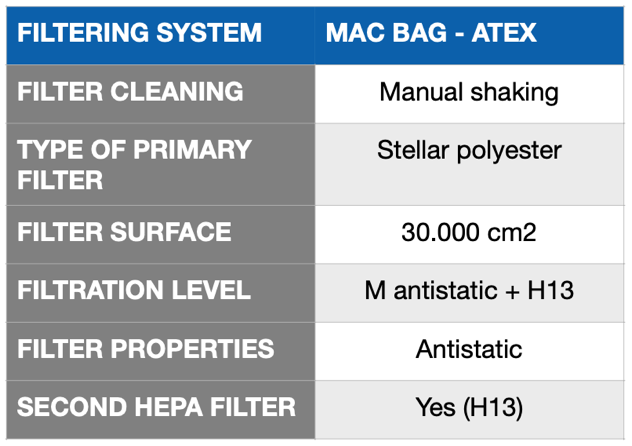

Bildschirmfoto 2021-11-09 um 10.33.54

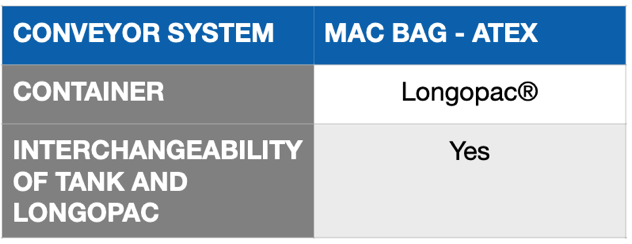

Bildschirmfoto 2021-11-09 um 10.34.00
